Encoder
Encoder
Regular price
$34.99 USD
Regular price
Sale price
$34.99 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The first FTC encoder to feature dual incremental and absolute outputs - finally one that can do it all.
Tech Specs
- 1024CPR quadrature output resolution
- Analog out on 3-Pin JST - use the joiner board (sold separately) to combine two analog outs into one control hub port
- 7mm Hex Bore (Compatible with 8mm REX™)
- Premium SLS construction

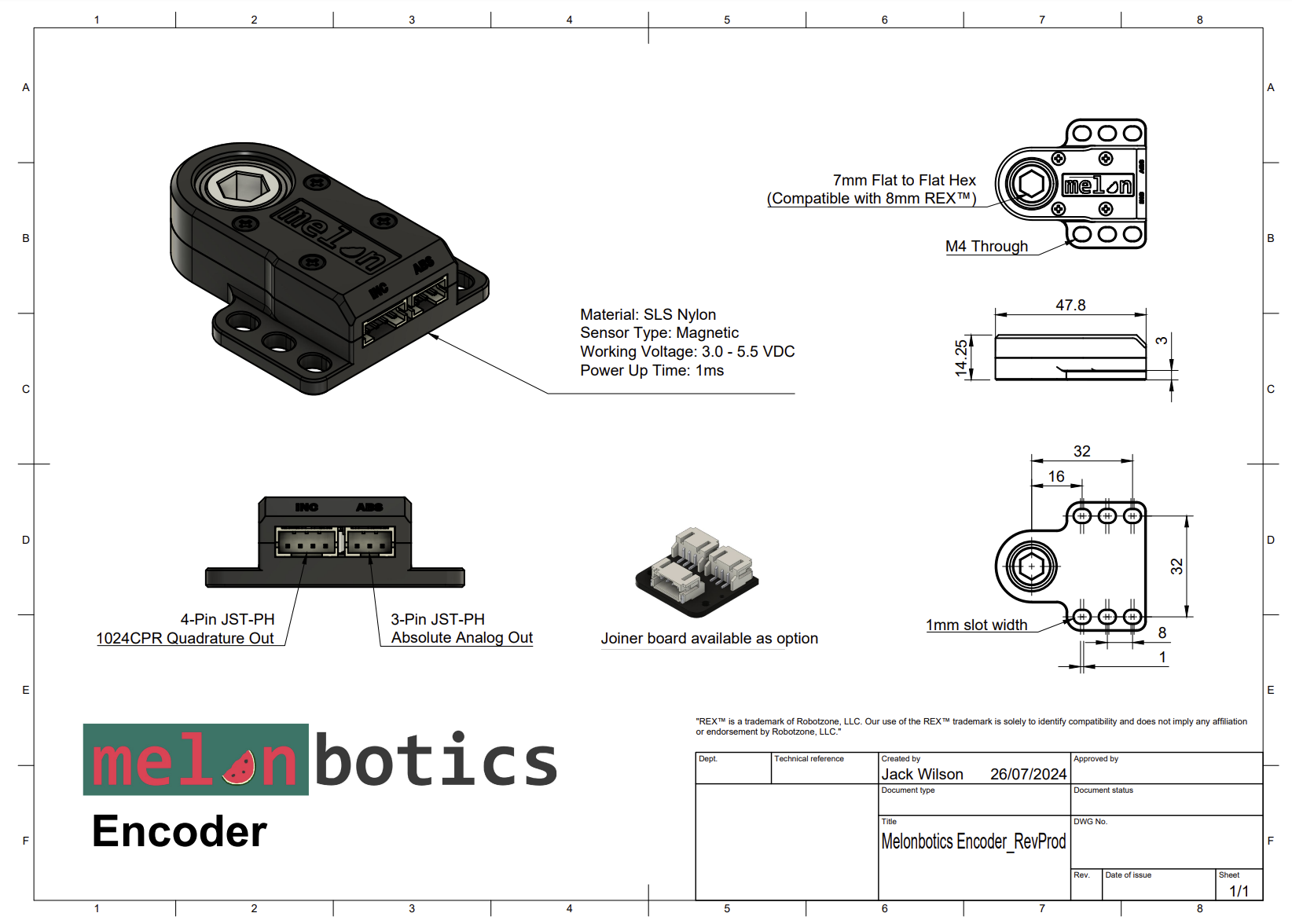

CAD Download
https://cdn.shopify.com/s/files/1/0790/0564/7165/files/Melonbotics_Encoder.step?v=1722223353
Whats in the Box
- Encoder
- 4-Pin JST-PH Cable (500mm Length)
- 3-Pin JST-PH Cable (300mm Length)
REX™ is a trademark of Robotzone, LLC.
